Installation Guide for Shower Water Softener System

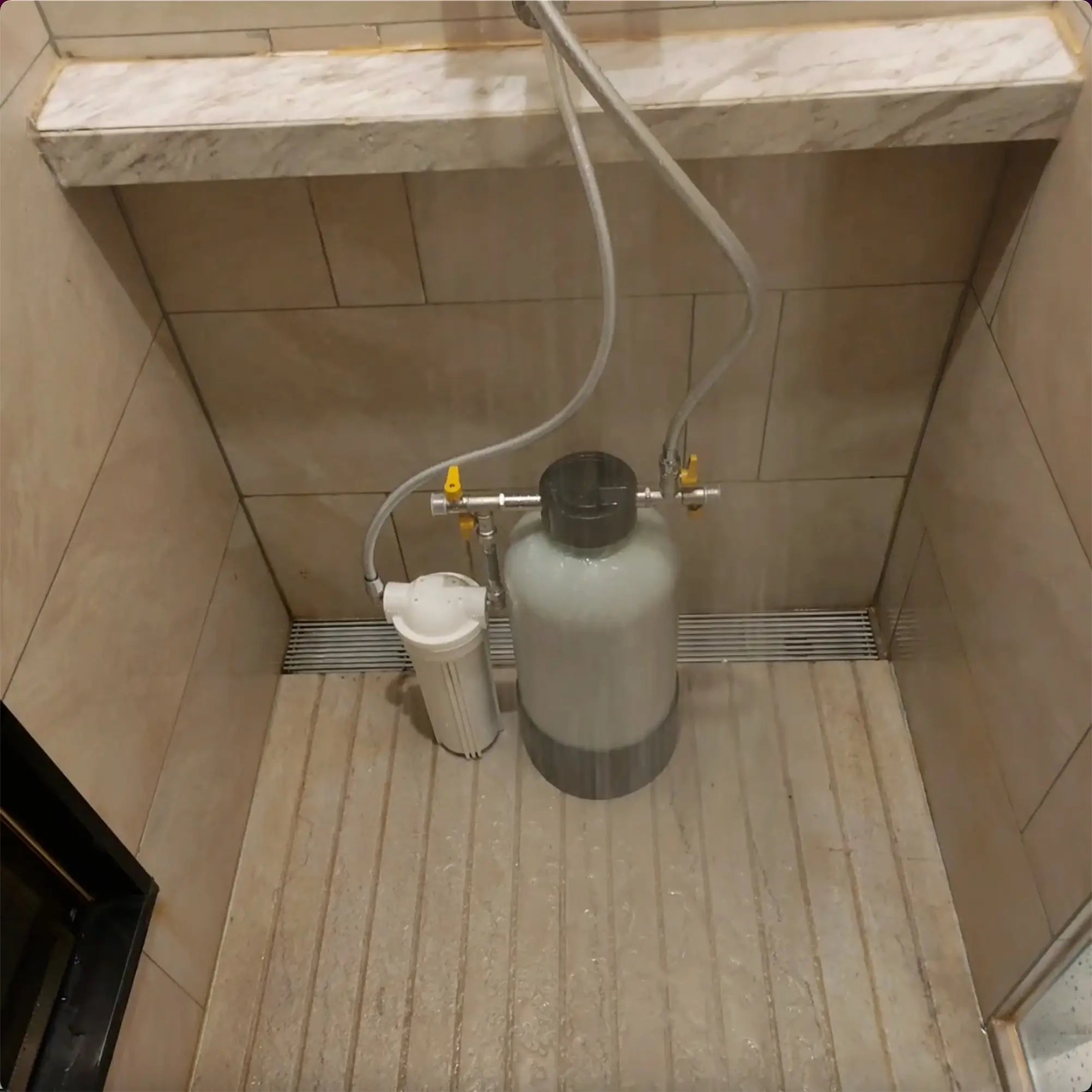

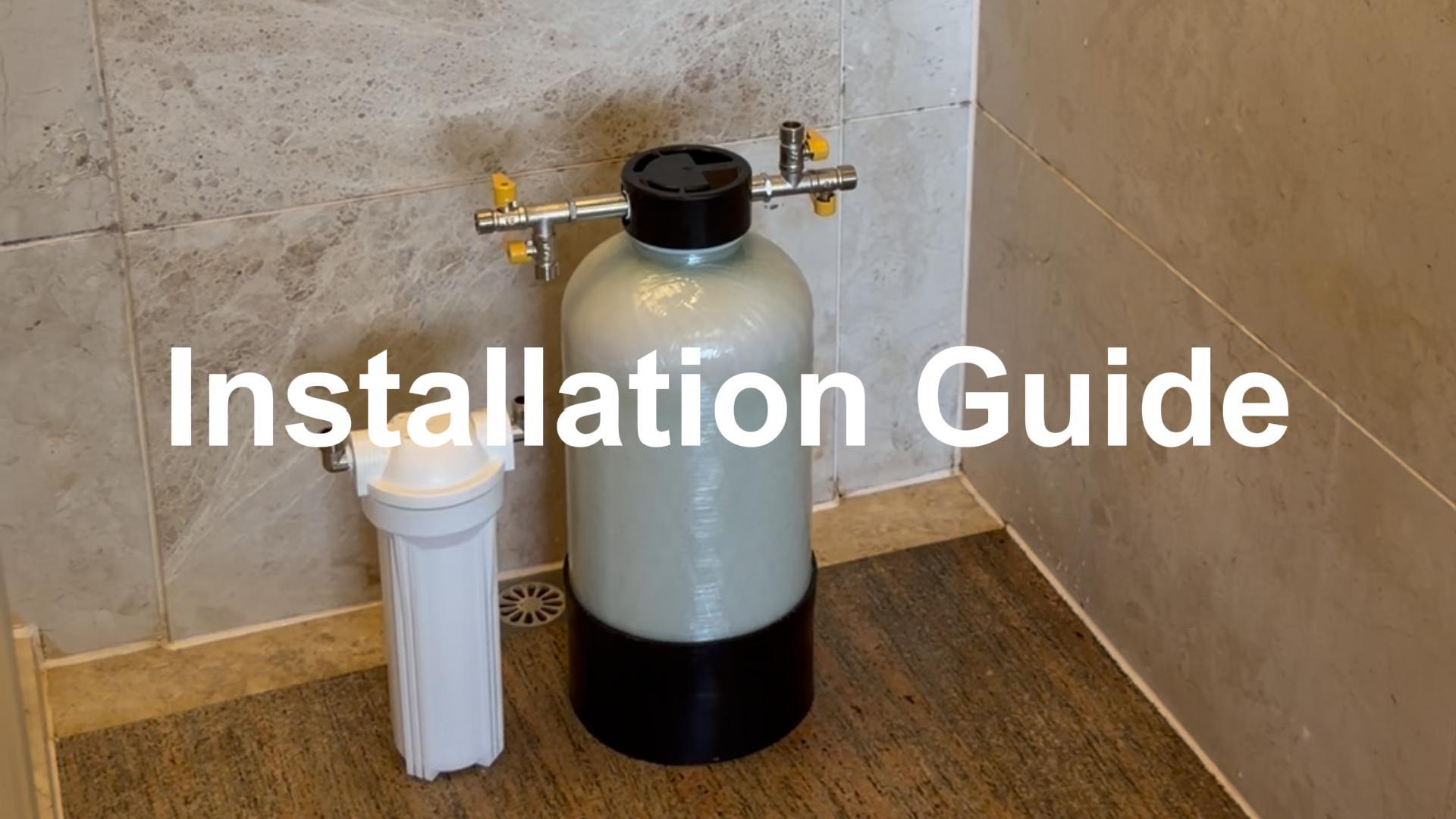

Please watch our installation video for your shower water softener system for helpful visual instructions. If you have any questions, feel free to contact us at service@softwatercare.com.
- Prepare the filter, the softener, and the short connector hose.
- Use the short hose to connect the filter outlet to the softener inlet.
- Remove your handheld showerhead.
- Connect your existing shower hose to the filter inlet.
- Take the shower hose from the kit and connect it to the softener outlet.
- Turn both vertical valves on the softener to the open position.
- Turn on the shower and let the water run for about 3 minutes to flush out any small particles from the new softener.
- Attach the other end of that hose to the showerhead.
- Your shower softener system is now installed. Enjoy your soft-water shower!
If you’re using a wall-mounted showerhead, you’ll need to switch to a handheld showerhead to fit the system.
System Installation FAQ
1. Is the system compatible with my shower?
1. Is the system compatible with my shower?
Yes—as long as you’re using a handheld showerhead.
If you currently have a wall-mounted (fixed) showerhead, you’ll need to switch to a handheld one.
We also offer a compatible handheld shower set here:
👉 View Shower Set
2. Does the system work in all countries?
2. Does the system work in all countries?
Yes. Our system uses a standard 1/2" (G1/2) connector, which is compatible with most showers worldwide.
No special tools or adapters are required.
3. How do I install the handheld showerhead?
3. How do I install the handheld showerhead?
If you’re replacing your showerhead with a handheld one, you can follow this general video guide:
👉 Watch on YouTube
4. What if I notice a leak after installation?
4. What if I notice a leak after installation?
Leaks are rare but easy to fix. Here’s how to troubleshoot common cases:
- Leak at the hose connection: Make sure the rubber O-ring is properly seated. Adjust or replace if needed.
- Leak at the ACF filter cap: Use the included filter wrench to tighten the cap securely.
- Leak at the brass elbow joint: Remove it using the brass wrench, apply extra plumber’s tape, then re-tighten.
