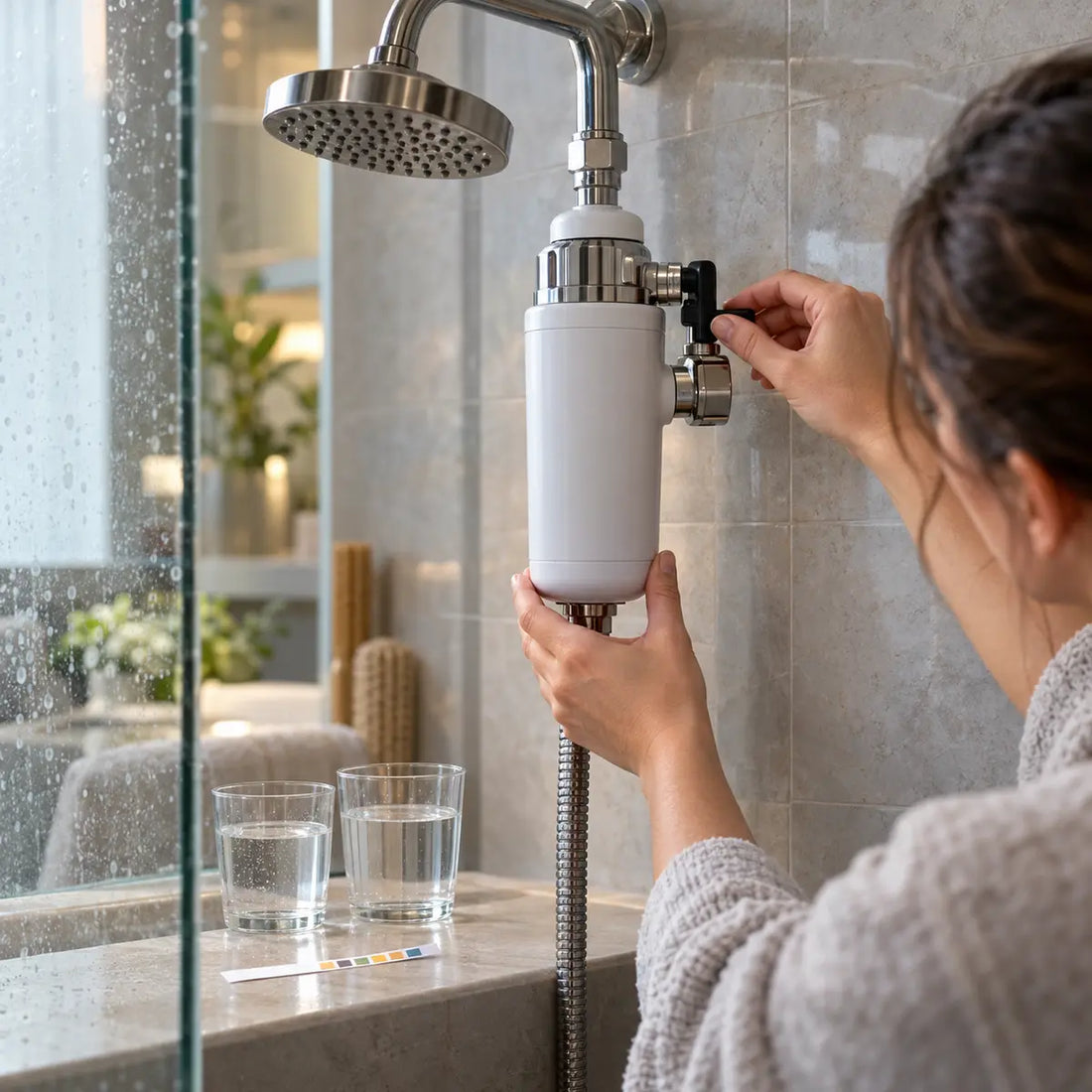

Shower Softener Bypass Valve: How to Test It

What does a shower softener bypass valve change?

A bypass arrangement changes the route water takes through the unit. In a conventional softener, service flow sends water through the treatment vessel, while bypass flow keeps water available by routing it around the softener. The exact arrangement may use one bypass valve, three separate valves, an integrated control, or a diverter associated with a portable shower unit. GE’s documented bypass options and Rheem’s bypass-valve guidance show different conventional arrangements and both tie the correct positions to the relevant model or configuration.

Think of the resin bed as a road that water must travel down to receive hardness treatment. The bypass path is a side road. If the side road is open, water can reach the shower without passing through the resin. If the unit is in service, the intended route sends water through the resin before it reaches the shower.

That explanation supports a useful conclusion: a bypass path can send untreated water to the shower. It does not support the stronger conclusion that every shower softener has a bypass valve or that every hard-water complaint comes from that valve.

What do “untreated water,” “service,” and “bypass” mean?

• Untreated water: Water that has not passed through the softener’s intended treatment path. It may still contain the incoming level of dissolved calcium and magnesium.
• Service position: The operating configuration intended to send water through the treatment path during normal use.
• Bypass position: A configuration intended to route water around the treatment path, often for maintenance or temporary use.
• Resin bed: The chamber or cartridge area containing the ion-exchange resin.
• Ion-exchange resin: Treatment media that exchanges selected dissolved ions, including calcium and magnesium, for other ions held on the resin.

Water hardness is primarily associated with dissolved calcium and magnesium. A hardness test therefore measures a chemical property of the water that is more direct than the way water feels on your skin or hair. The U.S. Geological Survey explanation of water hardness explains the relationship between hardness and calcium and magnesium.

Can a bypass valve send untreated water around the resin?

Yes, a bypass arrangement can route water around the resin treatment path. That is the purpose of bypass flow in conventional softener systems. The limitation is that your unit may use a different arrangement, and the valve may not be the reason water remains hard.

A portable shower softener may have no built-in bypass valve at all. It may instead use hoses, a shower diverter, a separate shutoff, or a connection arrangement that determines whether water passes through the resin. For example, the current WaterSticks ShowerStick documentation describes a portable flow path through the top and bottom fittings and separately discusses an optional diverter arrangement. It does not provide a universal built-in bypass-valve rule for other products. See the WaterSticks ShowerStick installation manual for that model-specific arrangement.

The first task is therefore identification. Find the model name, product label, installation diagram, or manual before interpreting a lever, knob, push-pull control, hose, or diverter.

Does hard-water feel prove the bypass valve is stuck open?

No. Hard-water feel is a symptom, not a component-level diagnosis. The same complaint can result from exhausted resin, incomplete regeneration, incorrect hose connections, a flow restriction problem, an open diverter, a unit installed backward, water that never reaches the treatment path, or a misleading test.

People often notice one or more of these changes:

• Soap seems harder to rinse away.
• Hair feels different after washing.
• Skin feels less smooth or more coated.
• White scale appears on fixtures.
• Water tastes or feels different.
• The shower water seems similar to the untreated water.

Those observations may be useful for deciding to investigate. They cannot tell you whether the bypass valve is physically stuck, incorrectly positioned, leaking internally, or working as designed while another part of the system has failed.

Observation: “The shower water feels hard.”
Stronger observation: “The valve marking does not match the documented service position.”
Measured evidence: “The treated sample shows materially more hardness than the correctly collected reference sample.”
Diagnosis: “The bypass valve is stuck open.”

The first three statements can be supported by what you see and measure. The last statement requires more evidence, especially if you plan to replace a valve or the entire softener.

If you want to check the water before inspecting the hardware, our guide on testing shower-softener claims with hardness strips explains matched treated and untreated samples, borderline readings, and the limits of strip testing.

How should you inspect a shower softener bypass valve safely?

Inspect the markings, flow direction, connections, and documented position without forcing the control or opening the unit. The inspection should answer whether the visible setup matches the manufacturer’s service configuration. It should not become an improvised valve repair.

1. Identify the exact unit and control arrangement

Start with the least disruptive information:

• Photograph the complete installation.
• Photograph the product label, model number, and valve or diverter.
• Look for arrows showing water flow.
• Find labels such as “service,” “bypass,” “in,” “out,” “open,” or “closed.”
• Note whether the unit has one control, three valves, hoses, or a separate diverter.
• Locate the installation and maintenance instructions.
• Check whether the unit is rented, supplied by a landlord, or connected to building plumbing you are not authorized to alter.

Do not rely on a generic picture from another brand. A handle that points left for service on one design may indicate bypass on another. Some valves use position markings. Others use the direction of a lever, the relationship between multiple valve handles, or a hose and diverter arrangement.

The manufacturer examples make this difference clear. GE describes both single-valve and three-valve bypass options, while Rheem describes a three-valve configuration in which service and bypass depend on the inlet, outlet, and bypass valves working together. Those instructions should be read as examples of model-specific designs, not as a universal rule.

2. Trace the water path visually

Follow the plumbing from the water source to the shower:

1. Where does water enter the softener?
2. Which fitting is marked as the inlet?
3. Which fitting is marked as the outlet?
4. Is there a separate line that appears to connect around the unit?
5. Does a diverter send water directly to the shower?
6. Are the hoses connected according to the manual?
7. Is the unit upright and supported as required?
8. Are any valves, connectors, or hoses visibly damaged?

The goal is to understand what the control is supposed to do. A bypass valve is only meaningful in relation to the flow path around the resin. If the hoses are reversed, the unit is connected to the wrong fitting, or a separate diverter is open, the water may miss the resin even though the main control appears correct.

For a portable unit, connection order can matter. The current ShowerStick manual, for example, specifies a short hose at the top and a long hose at the bottom for the installation it describes. That instruction applies to that model and should not be copied onto another softener. Clear water after installation also indicates that flushing has occurred; it does not prove that hardness has been reduced.

3. Compare the visible position with the exact manual

Find the diagram that shows normal operation. Look for wording such as:

• Service
• Use
• Operating
• Softening
• Bypass
• Winterize
• Shutoff
• Maintenance

Read the surrounding instructions, not just the illustration. Some diagrams show a valve from the front while your unit is installed from a different angle. A lever may appear reversed because the valve body has been rotated. A three-valve system may require two valves open and one closed, rather than one simple handle position.

Do not rotate, pull, push, or loosen a control based on a generic rule. If the manual says the control should move by hand, use only the movement and direction specified for your model. If it resists, stop. A stuck control may have a damaged stem, scale buildup, internal pressure, or a different locking arrangement.

Current WaterSticks instructions caution against using tools during specified installation steps after the shower head is removed. The same manual and its FAQ on drainage, flow, regeneration, and diverter conditions also discuss drainage and back-pressure conditions for that product. These are model-specific instructions, but they support a sound troubleshooting boundary: a resistant control should not be forced with pliers, a wrench, or an improvised extension.

4. Inspect for leaks and unsupported movement

Look at the connections before changing anything. Check for:

• Drips at threaded fittings
• Water marks or mineral tracks
• A hose that bends sharply
• A unit hanging from a fragile connection
• A loose mounting bracket
• Cracked plastic around a valve
• A control that moves independently of its indicator
• A connection that twists the plumbing when touched

A leak changes the risk of the job. Shut off water according to the model instructions or your property’s approved procedure if a leak is active. Renters should usually document the condition and contact the landlord or maintenance provider before disassembling a shower connection.

The aim of a visual inspection is to gather evidence. It is not to prove that an internal seal is healthy. A valve can display the correct position and still fail internally. A valve can also look unusual while working correctly because the manufacturer uses a different orientation.

5. Flush only as the manual directs

A sample taken immediately after installation, regeneration, or a connection change may not represent normal treated water. The unit may contain residual water, resin fines, salt, or installation debris.

For the WaterSticks ShowerStick, the manufacturer instructs users to flush after installation until the water runs clear and gives model-specific guidance to flush after regeneration before testing because residual salt can affect the result. Do not transfer that timing to another brand. Use your own product’s instructions.

If the water is cloudy, colored, unusually salty, or contains visible particles, postpone the hardness comparison until the manufacturer’s flushing condition has been met. A clear sample is easier to test, but visual clarity alone does not confirm softening.

How do you test shower water hardness after a softener?

Use the same compatible hardness test on a treated sample and a reference sample, collected under comparable conditions. A single treated-water result is weaker evidence than a comparison because you need to know how hard the incoming or bypass water is.

Choose the test before collecting samples

A consumer strip or drop-count kit may be adequate for a preliminary comparison if its instructions cover your expected hardness range. Check:

• The analyte: total hardness, calcium hardness, or another measurement
• The units: grains per gallon, milligrams per liter, or parts per million
• The detection range
• The sample volume
• The reading time
• The expiration date
• The storage conditions
• Whether the kit requires a color chart, drops, shaking, or a timed endpoint

Do not assume that a chlorine strip, pH strip, total-dissolved-solids meter, or conductivity meter measures hardness. Those tools may describe other water properties. They cannot substitute for a hardness test unless the product documentation specifically establishes that use.

A laboratory hardness method may use EDTA titration, a chemical method in which a reagent binds hardness ions and a color change indicates the endpoint. The NEMI summary of ASTM D1126 describes that method for suitable clear water and identifies limitations involving colored water and chemicals that interfere with calcium or magnesium measurement. It is technical background, not a reason to improvise a laboratory procedure at home.

Collect a treated sample

The treated sample should come from the outlet that normally supplies the shower after the unit has been placed in the documented service configuration.

Depending on the design, that may mean:

• A shower hose or shower head outlet downstream of the softener
• The outlet fitting identified in the product manual
• A collection point after the unit has flushed
• A temporary container held under the outlet without touching the water stream

Let the water run only as long as the manufacturer’s instructions require for flushing or sampling. Do not run water wastefully for an invented period. If the product manual gives no timing, use a consistent, documented approach and treat the result as preliminary.

Record:

• Date and time
• Unit configuration
• Valve or diverter position
• Whether the unit was recently regenerated
• How long the water was flushed
• Sample location
• Test brand and lot or expiration information
• Result and unit of measurement

Collect a reference sample

The reference sample should represent water that has not passed through the resin. That may be:

• A nearby untreated cold-water outlet supplied by the same source
• A documented bypass outlet
• The water source before the shower softener
• A sample collected with the unit temporarily removed only if the manufacturer or property owner authorizes that work

Do not compare a treated shower sample with a distant faucet unless you have a reason to believe both outlets receive the same source water. Different branches, blending valves, hot-water systems, filters, or building plumbing can produce different samples.

If you cannot obtain a genuine untreated reference sample safely, you can still test the treated water. Just label the result as a standalone observation rather than a controlled comparison.

Run both samples with the same method

Use the same test, sample volume, timing, lighting, and reading process for both samples. Test the reference sample first if the instructions allow it, then the treated sample. Rinse the container between samples with the water being tested, unless the kit instructions say otherwise.

Avoid common sources of test error:

• Reading a strip after the specified time
• Using a wet or contaminated container
• Holding a strip under the shower stream instead of using the stated sample volume
• Comparing colors under colored bathroom lighting
• Using old strips
• Testing water that is still salty after regeneration
• Switching between different test brands
• Treating an out-of-range result as a precise number
• Repeating only the result you hoped to see

A matched comparison matters more than a single attractive color change.

What hardness result should you expect?

There is no universal number that proves a bypass valve is stuck open. The expected result depends on the incoming hardness, the unit’s design, resin condition, regeneration state, flow rate, and test method.

USGS general categories place hardness at:

These are broad reference categories, not a pass/fail standard for your shower softener. The USGS hardness classification should help you describe a result, not diagnose a valve.

Some product-specific guidance uses grains per gallon. WaterSticks lists 0–3 grains per gallon as soft, 3–7 as moderately hard, 7–10 as hard, 10–14 as very hard, and 14 or more as extremely hard for its test-strip guidance. It also gives approximately 17.1 parts per million for one grain per gallon. Those ranges belong to that product’s guidance and should not be applied as a universal cutoff.

How reliable are hardness strips?

Consumer tests can be useful, but a borderline reading deserves caution. In an evaluation by the San Francisco Public Utilities Commission, the tested home kits showed poor agreement with laboratory results in very low-hardness water and more than 80 percent agreement in follow-up testing with moderate-to-high hardness water. The results concerned the evaluated kits and water conditions, not every strip brand or household. The SFPUC home-test-kit evaluation explains that limitation.

Treat a result as stronger when:

• The test is within its stated range.
• The reference sample produces a plausible result.
• The treated and reference samples were collected consistently.
• The same test method was used for both.
• The result repeats under the same conditions.
• The result changes in the direction expected when the unit’s documented configuration changes.

Treat a result as weaker when:

• Both samples are near the strip’s lowest color category.
• The strip gives an out-of-range result.
• The water was sampled immediately after regeneration.
• The sample source is uncertain.
• The kit is expired or poorly stored.
• The result conflicts with the manufacturer’s instructions.

If the decision involves replacing an expensive unit or changing plumbing, confirm a borderline result with a better-suited kit, a professional water test, or the manufacturer’s recommended method.

What does the test result tell you?

A valid comparison can show whether the treatment path is reducing measurable hardness, but it cannot identify the failed component by itself. Use the observation, valve configuration, and test result together.

A simple decision aid

1. Does the manufacturer’s diagram identify the current configuration as service? If yes, continue. If no or unknown, correct the documentation problem before touching the valve.
2. Was the control or connection inspected without force, leakage, or improvised tools? If yes, continue. If no, stop and escalate.
3. Was the treated sample collected downstream of the resin path after the required flush? If yes, continue. If no, repeat the sample correctly.
4. Was a valid reference sample tested with the same method? If yes, compare the results. If no, treat the treated result as preliminary.
5. Does the treated result show a clear reduction from the reference sample? If yes, the result supports active hardness reduction. The valve is not shown to be stuck open under that test condition. If no, investigate the full treatment path. If the result is borderline or inconsistent, repeat or confirm the test before replacing parts.

The complete static decision table is below.

The most useful conclusion is often narrower than the one the reader expected. “The treated sample did not show the expected hardness reduction” is a strong and honest finding. “The bypass valve is stuck open” may still be unconfirmed.

How can you tell bypass flow from exhausted resin?

Compare the valve configuration, maintenance history, installation, and test results before blaming the bypass valve. Bypass flow is one possible explanation for high treated-water hardness, while exhausted resin is another.

Our internal guide on five signs to check before regenerating a shower softener covers the related checks for resin condition, flow, regeneration, and installation. The distinctions below help you decide which path deserves attention first.

Stuck or incorrectly positioned bypass valve

This explanation becomes more plausible when:

• The visible position conflicts with the exact manual.
• The unit has a separate diverter that is open.
• The treated sample is very similar to the reference sample.
• The result stays similar after correct regeneration and flushing.
• The water route visibly avoids the resin vessel.
• The control is damaged or does not correspond to its indicator.

A hardness result alone still does not prove a stuck valve. It shows that the expected hardness reduction did not occur under the tested condition.

Exhausted or poorly regenerated resin

This explanation becomes more plausible when:

• The unit worked previously and performance declined gradually.
• The valve configuration matches the service position.
• The treated sample is somewhat lower than the reference but no longer low enough for the product’s intended use.
• The unit has not been regenerated according to its instructions.
• The resin has reached the end of its service life.
• The flow rate has increased or the unit is serving more water than expected.

Ion-exchange resin has a finite exchange capacity. Regeneration restores capacity in systems designed for regeneration, but the correct procedure varies by product. A portable unit may require a specific salt solution, flushing sequence, drainage setup, or waiting period. Do not assume that adding more salt, changing the concentration, or shortening the process will solve the problem.

Incorrect installation or flow direction

This explanation becomes more plausible when:

• The inlet and outlet connections do not match the manual.
• The hoses are reversed.
• The unit is not upright as required.
• Water enters a fitting that is not intended as the inlet.
• The flow arrow points opposite the actual direction.
• The softener was recently moved, cleaned, or reinstalled.
• A diverter or shower fitting sends water around the unit.

A unit can look clean and leak-free while still being connected incorrectly. Visual clarity after flushing also does not verify hardness reduction.

Excessive flow or pressure conditions

This explanation becomes more plausible when:

• The problem appears only when the shower is running at high flow.
• A replacement shower head or flow restrictor changed the behavior.
• Drainage is restricted.
• The unit has a specified flow limit that is being exceeded.
• The water path creates back pressure.

The available documentation includes model-specific cautions about flow restrictors, drainage, and alternate shower heads. Treat those as instructions for the named product. Do not use a different product’s flow limits as a universal threshold.

Test or sample error

This explanation becomes more plausible when:

• The reference sample gives an unexpected result.
• Repeated tests disagree sharply.
• The sample was taken immediately after regeneration.
• The test is expired or out of range.
• The strip was read late.
• The treated and reference samples were collected from different water sources.
• The test measures a different property than hardness.
• The result is near the kit’s lowest detection range.

Repeat the test with fresh materials and the same procedure. A more precise test may be worthwhile before replacing a valve or resin bed.

When should you stop DIY troubleshooting?

Stop when the next action could damage the valve, release pressurized water, alter building plumbing, or create a leak you cannot control.

Stop immediately if:

• The valve or fitting is cracked.
• A connection begins leaking.
• The control will not move by the documented hand force.
• You need pliers, a wrench, heat, lubricant, or an improvised tool.
• The unit is connected to concealed plumbing.
• You cannot identify the inlet and outlet.
• The installation belongs to a landlord or building owner.
• The unit is unsupported and may fall.
• Water is spraying or rapidly accumulating.
• You would need to open a sealed vessel or remove the resin.
• The manufacturer’s instructions conflict with a generic troubleshooting guide.

A renter can usually perform visual observation and a water test without changing the installation. Removing a shower softener, altering a diverter, or changing a building-side valve may require permission. Photograph the setup, record the symptoms and test results, and provide that information to the property manager or manufacturer.

For safe installation and connection checks, review this renter-safe shower-softener installation and leak-testing guide. It covers support, washers, flow direction, connections, and leak observation without turning a basic inspection into a plumbing alteration.

What should you record before ordering parts?

Record the evidence first. A written result makes the next conversation with the manufacturer, landlord, or plumber much more productive.

Use this record:

The record should distinguish what you saw from what you concluded. Write “lever position differs from the diagram” rather than “valve failed.” Write “treated sample measured 4 gpg and reference measured 8 gpg” rather than “softener is working perfectly.” That wording preserves useful evidence and avoids locking you into a diagnosis too early.

When is a replacement part justified?

A replacement valve, resin cartridge, or complete unit becomes more reasonable when:

• The model is identified.
• The service and bypass positions are verified.
• The unit is installed according to the manual.
• The resin has been regenerated or maintained as directed.
• The samples were collected correctly.
• The hardness result repeats.
• The manufacturer confirms the suspected part or procedure.
• Repair cost and availability make replacement sensible.

A single high reading after an uncertain sample is a weak reason to replace the unit. A repeated high treated-water result, a documented service configuration, a correct comparison sample, and a visibly damaged control provide a much stronger case for escalation.

Frequently Asked Questions

Final decision: test before replacing

A shower softener bypass valve stuck open is one possible cause of persistent hard-water symptoms, but hard-water feel alone cannot establish it. The strongest practical confirmation combines four pieces of evidence:

• The exact model and flow arrangement are identified.
• The valve or diverter position is compared with the manufacturer’s documented service position.
• The unit is inspected without force, leakage, or improvised tools.
• A properly collected treated sample is compared with a suitable reference sample using the same hardness method.

If the treated sample shows a clear hardness reduction, the test supports active treatment under that condition. If it does not, the result supports a treatment-path problem, but the exact fault remains open until you check bypass flow, resin condition, regeneration, installation, flow conditions, and test quality.

Record the observations and test values before ordering a valve, resin, or replacement unit. Then follow the verified manufacturer instructions or provide the record to qualified support. That small pause can prevent an unnecessary replacement and help you address the part of the system that is actually causing the problem.

Print this troubleshooting guide

Use the record above to preserve your observations before contacting support.
