Water Softener Channeling: Diagnose Hard Water Return

What Is Resin Bed Channeling?

Resin bed channeling occurs when water or regenerant follows preferential paths through the media instead of passing evenly through the full bed. The result is an underused portion of resin and an overloaded flow path that can allow hardness to break through early.

A residential ion-exchange softener contains small resin beads. During service, calcium and magnesium in the water attach to exchange sites on those beads. During regeneration, a concentrated sodium chloride or potassium chloride solution reverses that exchange and restores the resin’s ability to capture hardness.

That process depends on contact. Water must reach the available resin, and brine must reach the exhausted exchange sites. If a crack, void, compacted zone, poor distributor pattern, or restricted backwash causes fluid to favor one route, the entire bed may not participate equally.

A useful analogy is a crowded gravel path after a storm. Water does not spread across every stone. It finds the lowest-resistance channel and deepens it. The surface may look wet overall, but some areas receive little flow. A resin bed can behave similarly under unfavorable hydraulic conditions.

The Water Quality Association defines residential softening through cation exchange, in which calcium and magnesium are exchanged for sodium or potassium. Its technical glossary also distinguishes rated capacity, rated service flow, pressure drop, and resin fouling. Those definitions matter because a resin bed can have a theoretical capacity that is much higher than its usable field performance. See the Water Quality Association softener glossary for the industry terms behind those distinctions.

Channeling does not automatically mean the resin itself is chemically ruined. The bed may still contain usable exchange capacity. The problem may be that the water and brine are not reaching enough of it.

How Does a Softener Remove Hardness?

A cation-exchange softener removes hardness by swapping calcium and magnesium ions for sodium or potassium ions on the resin. Hardness is usually reported as an equivalent concentration of calcium carbonate, written as mg/L as CaCO3.

The U.S. Geological Survey explanation of water hardness places water into broad categories:

These are general water-quality categories, not a universal pass/fail specification for every shower softener. A product’s intended outlet performance depends on its design, resin volume, operating flow, inlet hardness, and manufacturer instructions.

The exchange reaction is easier to understand if you think of each resin bead as a parking lot filled with sodium ions. Calcium and magnesium arrive with stronger demand for exchange sites. They take places on the resin, and sodium is released into the treated water. Once enough sites are occupied by hardness, the resin is considered exhausted.

Regeneration supplies a high concentration of sodium or potassium ions. That concentration pushes the exchange in the opposite direction. Calcium and magnesium leave the resin, and sodium or potassium occupies the sites again.

The process is not binary. A unit can regenerate partially. It can regenerate the resin near the preferred flow path while leaving another region under-regenerated. It can also regenerate correctly but fail to deliver enough capacity because the service flow is too high or the resin is fouled.

That is why “the unit regenerated” is weaker evidence than “the unit reduced outlet hardness after regeneration and maintained that reduction through the expected service interval.”

Why Can a Unit Regenerate and Still Deliver Hard Water?

A visible regeneration cycle confirms controller activity. It does not prove even hydraulic distribution, correct brine concentration, adequate brine contact, or successful hardness removal.

For example, the Fleck 5600SXT downflow service manual identifies backwash, brine draw and slow rinse, rapid rinse, and brine fill as separate stages. It also directs the operator to confirm that water is drawn from the brine tank during the brine-draw stage. The Pentair Fleck service manual is model-specific, so its sequence must be adapted to the valve actually installed.

Several failure paths can hide behind a normal-looking cycle:

• The controller advances, but the injector does not create enough suction to draw brine.
• The brine line is restricted, leaking, kinked, or incorrectly connected.
• The drain flow control is restricted, preventing an adequate backwash.
• The unit remains partly in bypass.
• The distributor tube or internal valve leaks.
• Salt is present but has formed a bridge, so water cannot dissolve enough regenerant.
• The resin has become fouled by iron, organics, or biological growth.
• Flow distribution through the bed is uneven.

Pentair’s troubleshooting table lists bypass position, missing salt, injector restrictions, inadequate brine fill, distributor-tube leaks, internal valve leaks, iron buildup, a fouled mineral bed, drain-flow restrictions, and failure to draw brine as distinct causes of hard water or poor conditioning. That list is a reminder to treat channeling as a differential diagnosis, not a first guess.

What Is Resin Bed Utilization Efficiency?

Resin Bed Utilization Efficiency, or RBUE, is a proposed diagnostic measure for how much of a softener’s verified usable performance is being realized in the field. It is not an established NSF, WQA, ASTM, or manufacturer metric.

A practical working formula is:

RBUE = measured usable hardness-removal performance ÷ verified reference performance × 100

The reference might be a documented manufacturer performance value, a verified baseline from the same unit after proper setup, or a controlled comparison made at the same flow and inlet hardness. The reference must be identified. A nominal resin-capacity number is not automatically a reliable field baseline.

RBUE is useful because it separates two ideas that are often confused:

A deterministic benchmark is more useful than a vague assumption:

Treat “it uses salt, so it works” as a failed performance test. Treat the unit as passing only when repeated post-regeneration outlet samples meet the product’s stated or documented target, and the brine-draw and flow checks also pass.

This benchmark is proposed for field diagnosis. It is not a certification protocol. A minimum practical comparison is two paired inlet-and-outlet hardness checks: one shortly after a confirmed regeneration and another after a defined amount of use. More observations are better when the failure is intermittent.

If outlet hardness remains high immediately after an apparently complete cycle, suspect bypass, brine, valve, settings, or severe fouling before channeling. If outlet hardness is initially low but rises much earlier than expected despite verified brine draw and correct settings, poor bed utilization becomes more plausible.

How Do You Diagnose Water Softener Channeling?

Diagnose channeling from evidence, not from salt consumption or the age of the resin. Start with low-risk checks, then measure hardness, observe regeneration, and review alternative causes.

Confirm that the product is actually a softener

Many shower products are filters. A carbon or activated-carbon filter may reduce chlorine, taste, odor, or some organic compounds, but it does not perform cation exchange unless it contains suitable ion-exchange resin and a regeneration method.

A product listing that says “hard-water filter” is not enough. Look for:

• Ion-exchange resin or softening media.
• A stated regeneration or recharge process.
• A regenerant such as sodium chloride or potassium chloride.
• A rated capacity or hardness-removal claim.
• A flow path that sends water through the softening stage.

For a compact system that combines filtration and softening, identify which stage is responsible for hardness removal. The Shower Softener Guide explains the difference between chlorine filtration, ion exchange, contact time, and hardness testing.

Test inlet and outlet hardness

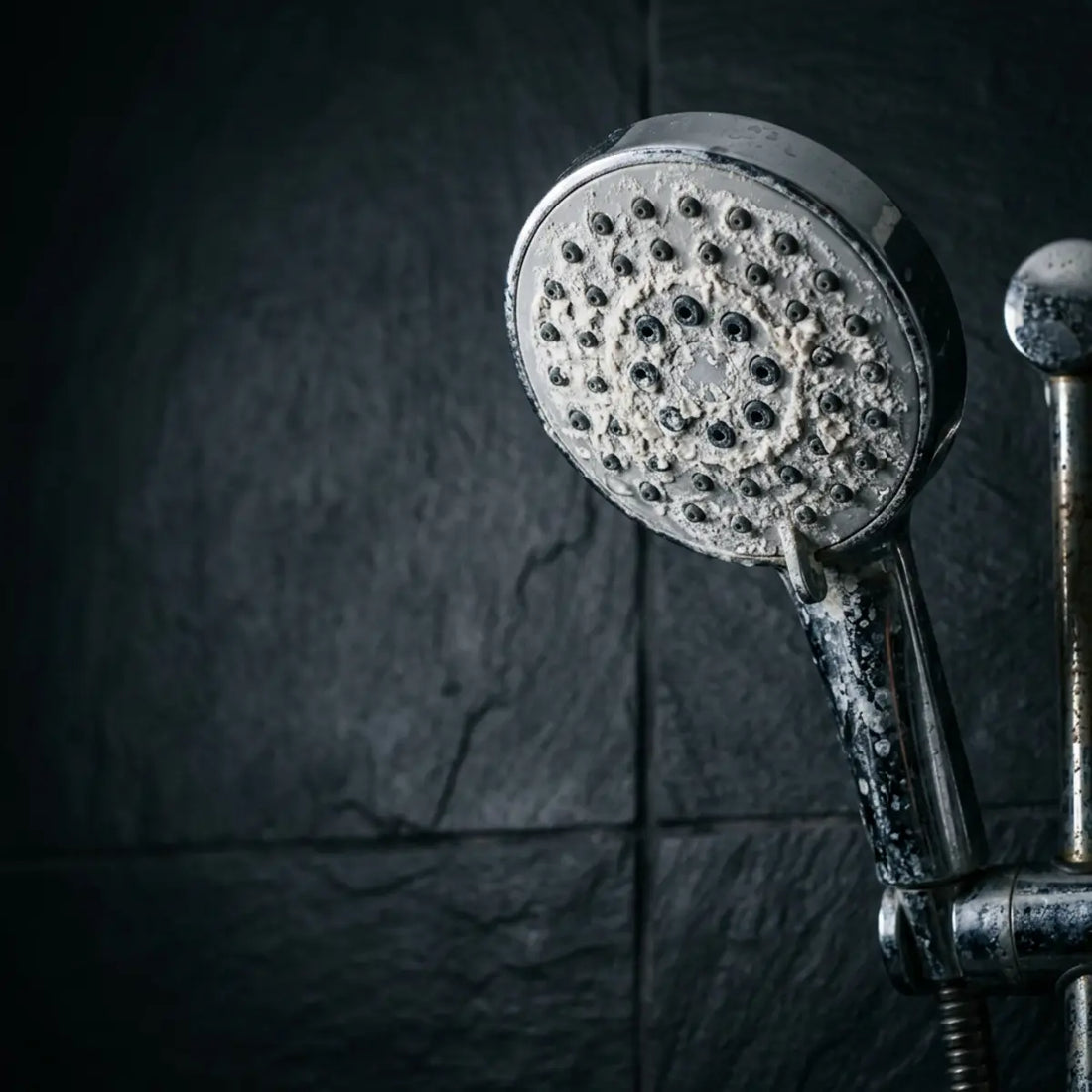

Do not rely on skin feel, scale on the showerhead, soap behavior, or a single visual observation. Collect an untreated sample before the unit and a treated sample after the unit, using the same test method and comparable water conditions.

Consumer strips can be useful for screening when used consistently. A titration kit can provide a more graduated result. ASTM D1126 is an EDTA titration method for hardness in clear samples that are free of chemicals that interfere with calcium or magnesium measurement. The NEMI summary of ASTM D1126 hardness testing describes that method’s scope.

Record:

• Inlet hardness.
• Outlet hardness.
• Date and time.
• Whether the unit was freshly regenerated.
• Approximate water volume or shower duration since regeneration.
• Test method and units.
• Salt or regenerant condition.
• Any unusual flow or pressure behavior.

A single outlet result can mislead. If the sample was taken from a stagnant hose, collected before the unit flushed, or tested after the softener had been bypassed, it does not represent normal performance.

Check bypass and leaks

Confirm that the bypass valve is fully in the service position. A partially bypassed unit can produce a mixture of treated and untreated water, making the system appear to work weakly.

Inspect visible connections for:

• Drips.
• Wet fittings.
• Cracked tubing.
• Kinked brine or recharge lines.
• Loose quick-connects.
• Unusual discharge to the drain.
• A valve that does not move fully between positions.

A leak on the pressure side can reduce flow through the intended resin path. A leak in the brine circuit can reduce regenerant delivery. Neither condition is channeling, even though both can create early hardness breakthrough.

Observe the regeneration cycle safely

Use the actual manual for the installed valve. Do not open a pressurized tank or disconnect a line during a cycle unless the manufacturer specifically provides that procedure.

For a compatible downflow valve, the sequence may include backwash, brine draw and slow rinse, rapid rinse, and brine fill. During brine draw, the critical observation is whether the unit actually removes water from the brine container. A display that advances through the stage is not enough.

Also watch for:

• A steady drain flow during backwash.
• Brine level changing during draw.
• A drain flow that stops or becomes unusually weak.
• A brine tank that fills but does not draw down.
• A cycle that ends prematurely.
• A pump or power source that loses operation.

The exact behavior varies by design. Compact portable units may use a pump and reservoir rather than a conventional brine tank. Their instructions control the test.

A replacement accessory can solve a recharge-flow problem only when it matches the actual system and instructions. For example, the Shower Softener Recharge Pump Kit is described as including a pump, hoses, and an adapter, with instructions to use a portable power bank and keep the USB port away from water. That product information is a store-local specification, not external evidence that every recharge failure has the same cause.

Review settings and salt condition

Check the programmed hardness, capacity, regeneration interval, flow direction, and recharge duration against the product manual. An incorrect hardness setting can cause the unit to regenerate too late or too early. A capacity setting copied from a larger softener can be unrealistic for a compact bed.

Inspect the regenerant:

• Is the salt or potassium chloride compatible with the unit?
• Is there a salt bridge or hardened crust?
• Is the regenerant wet, contaminated, or clumped?
• Does the system use the specified concentration?
• Has the unit been left stagnant for a long period?
• Was the bed rinsed after a chemical cleaning?

The Water Quality Association’s best-practice guidance on residential softeners discusses salt efficiency, sodium versus potassium chloride, salt bridges, and regeneration choices. Those points are relevant because poor regenerant preparation can mimic a resin-capacity problem.

Channeling, Fouling, or Brine Failure: Which Fits Best?

The symptom “hard water returned” is too broad to identify the cause. The timing and test results are more informative.

Fouling

Fouling means something has accumulated on or within the resin and reduced usable capacity. Iron fouling is a common example. Organic matter or biological contamination can also affect a softener after stagnation, flooding, or a contaminated supply event.

The Water Quality Association describes iron fouling as iron accumulation on or within the exchange bed that reduces media capacity. Its sanitation guidance also recognizes organic or bacterial fouling under certain contamination and stagnation conditions. Read the store’s paired guide on resin fouling versus channeling before replacing media. Paired hardness and iron testing can prevent a hydraulic problem from being mistaken for dead resin.

Brine or valve failure

Brine failure is often easier to prove than channeling. If the unit does not draw brine, has no adequate rinse, remains in bypass, or has a blocked injector, the resin may never receive a proper regeneration.

This branch deserves priority because it is usually safer and less expensive to verify than opening a vessel. The related guide on shower softener regeneration mistakes covers device type, salt preparation, brine contact, rinse completion, flow path, bypass, incoming hardness, and capacity.

Channeling

Channeling stays on the list when:

• The product is confirmed to be an ion-exchange softener.
• Inlet hardness is stable.
• Outlet hardness falls after regeneration but returns unusually early.
• Brine draw and rinse behavior are confirmed.
• The unit is not in bypass.
• Salt preparation and settings are correct.
• Fouling indicators are absent or have been addressed.
• Flow conditions suggest poor distribution.
• A qualified inspection finds an uneven, compacted, cracked, or otherwise disturbed bed.

A U.S. Department of Defense technical manual gives an industrial indicator in which a 15 percent or greater difference in bed thickness measured across multiple points may indicate channeling. That value is not validated for compact shower softeners, and it is not a reason to open and probe a sealed consumer vessel. The UFC ion-exchange operation and maintenance manual is best used here as a bounded technical reference, not a homeowner disassembly instruction.

Are Compact Shower Softeners More Vulnerable?

Compact systems may have less operating margin because they contain less resin, handle a narrower flow range, and often rely on simplified recharge equipment. That is an engineering hypothesis, not a settled comparative finding.

The checked sources do not establish that compact point-of-use shower softeners are intrinsically more susceptible to channeling than full-size residential softeners. Product construction varies widely. Distributor design, bed depth, resin type, flow rate, pressure, recharge method, and installation can matter more than the label “compact.”

The practical implication is still important: a small softener can show hardness breakthrough sooner when its usable capacity is reduced. A modest change in flow or inlet hardness may consume a larger share of the available bed capacity. Poor packing or an incomplete recharge may also have a larger effect when the total resin volume is small.

An AWWA Water Science pilot involving a biological ion-exchange filter provides a bounded example of the general hydraulic mechanism. After more than two months and approximately 4,000 bed volumes, the study observed a uniform plug during water-only backwashing, with flow presumed to channel along the outer edges. Air scouring broke the crust and allowed the desired bed expansion during later backwash. The AWWA Water Science ion-exchange study did not test a residential shower softener, so it cannot establish that the same repair applies to one.

That distinction matters. Do not add air scouring, alter distributors, or pour cleaning chemicals into a compact unit because a larger treatment vessel used that method. Follow the product manual or use a qualified technician.

How Should You Decide Whether to Repair or Replace?

Repair or replacement becomes defensible when the measured performance loss remains after reasonable checks and approved corrective steps. Resin age by itself is not enough.

Use this decision sequence:

1. Confirm the technology. Verify that the unit performs ion exchange rather than filtration alone.
2. Document the symptom. Record when hardness returns, how much water passes, and whether the change occurs immediately or gradually.
3. Measure inlet and outlet hardness. Use comparable samples before and after regeneration.
4. Verify bypass and leaks. Eliminate installation and valve-position causes.
5. Observe brine or recharge behavior. Confirm the unit actually delivers regenerant and completes its rinse.
6. Check settings and salt condition. Correct hardness, capacity, regenerant, and recharge instructions.
7. Investigate fouling. Consider iron, organics, contamination, and stagnation.
8. Assess flow distribution. Look for restricted drain flow, unusual pressure behavior, installation errors, or a qualified inspection finding.
9. Repeat the performance test. A repair should produce a measurable improvement in outlet hardness or service interval.
10. Replace media or the unit only when the evidence supports it.

The UFC manual uses a useful industrial principle: resin replacement should follow a demonstrated, unrecoverable decline in capacity or softening efficiency after cleaning and manufacturer-recommended procedures. It gives a 25 percent decrease as an industrial decision reference, but that number is not a universal threshold for a compact shower softener.

The manual also reports broad industrial resin-life ranges, yet those figures should not be converted into a promise that a particular shower unit will last a set number of months or years. Compact products operate under different flow, feed-water, regeneration, and maintenance conditions.

Before buying replacement media, compare the repairability of the unit with the cost and availability of compatible resin, seals, valves, pumps, and fittings. The guide on whether to replace shower softener resin or the entire unit is useful when the problem may be a serviceability or flow-path issue rather than exhausted resin.

Resin selection matters too, but a higher nominal capacity does not correct a bypass leak, failed brine draw, fouling, or uneven distribution. The comparison of 8% versus 10% crosslink resin explains why nominal resin specifications should be considered alongside usable capacity, flow, regeneration, and breakthrough behavior.

What Is Decision Confidence Ratio?

Decision Confidence Ratio, or DCR, is a proposed checklist score for deciding whether the evidence is strong enough to call the problem channeling. It is not a statistical probability or an industry standard.

A simple version is:

DCR = independently verified checks supporting the leading cause ÷ required checks completed

For a channeling diagnosis, the required checks might include:

• Confirmed ion-exchange technology.
• Paired inlet and outlet hardness results.
• Verified service and bypass position.
• Confirmed regenerant delivery.
• Observed or otherwise verified rinse and drain behavior.
• Correct hardness and capacity settings.
• Salt or regenerant condition checked.
• Fouling alternatives reviewed.
• Flow-distribution concerns documented.
• A repeat test showing poor usable performance.

A pre-test DCR should be low because the symptom alone does not distinguish among several causes. After hardness testing and brine verification, DCR should rise only when those results support the same explanation. If the unit never draws brine, the evidence points toward a recharge or valve fault instead of channeling.

Do not treat a high DCR as permission to open a sealed vessel or as proof that resin replacement will solve the problem. It is a structured way to prevent one dramatic symptom from carrying more weight than several basic checks.

When Should You Stop DIY Troubleshooting?

Stop and seek qualified help when the next step involves pressurized equipment, chemical treatment, electrical exposure near water, vessel opening, or a component that cannot be inspected safely.

A technician is especially appropriate when:

• The tank or valve is pressurized.
• The manufacturer does not provide a consumer service procedure.
• The unit leaks internally.
• The drain line or injector needs disassembly.
• The system uses electrical pumps near water.
• You suspect contaminated water, biological growth, or significant iron fouling.
• The resin bed may need to be removed or inspected.
• Hardness remains high after confirmed brine delivery and correct settings.
• You cannot establish whether the unit is a filter or a softener.
• A replacement decision would require opening the vessel.

For a pump-powered recharge system, keep electrical connections away from water and use only the power method specified by the manufacturer. A failed recharge accessory is a different problem from channeling, even if both produce hard water.
